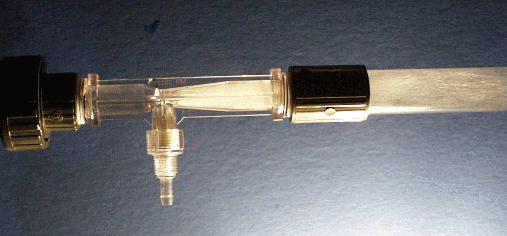

What Is The MazzeiŽ Venturi Injector?
The MazzeiŽ Venturi Injector is a high efficiency, differential pressure injector.
A pressure difference between the inlet and outlet ports of the injector creates
a vacuum inside the injector body, which initiates suction through the suction port.
Special Features:
- Ideal for Injection of Ozone into Shower Water.
- Considerable cost savings versus other injection methods.
- Single unit construction-Trouble free operation with NO moving parts.
- NO electrical connections needed.
- Molded of Ozone-resistant PVDF (KYNAR).
How Does The MazzeiŽ Venturi Injector Work?
When a pressurized operating (motive) fluid enters the injector inlet,
it is constricted toward the injection chamber and changes into a high
velocity jet stream. The increase in velocity through the injection
chamber results in a decrease in pressure, thereby enabling an additive
material to be drawn through the suction port and entrained into the
motive stream. As the jet stream is diffused toward the injector outlet
it's velocity is reduced and it is reconverted into pressure energy
(but at a pressure lower than injector inlet pressure).
The MazzeiŽ Venturi Injector is extremely efficient. It operates over
a wide range of pressures and requires only a minimal pressure differential
between inlet and outlet sides to initiate a vacuum for the suction of
either gas (i.e.-Ozone) or liquid.
